Network support | LTE/WCDMA/GSM |
Platform | MTK MT6737WM |

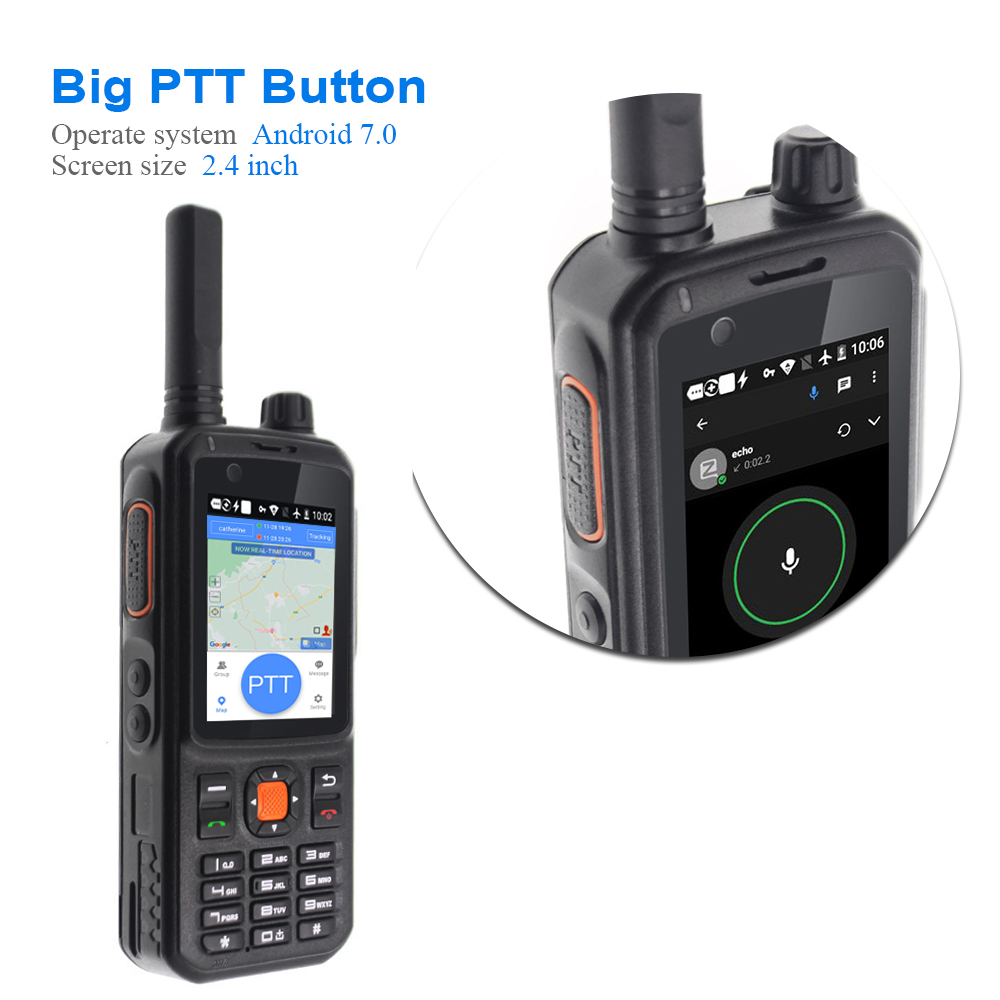

Operate system | Android 7.0 |
Camera | Front(5MP) and Rare(8MP), focus automatically |

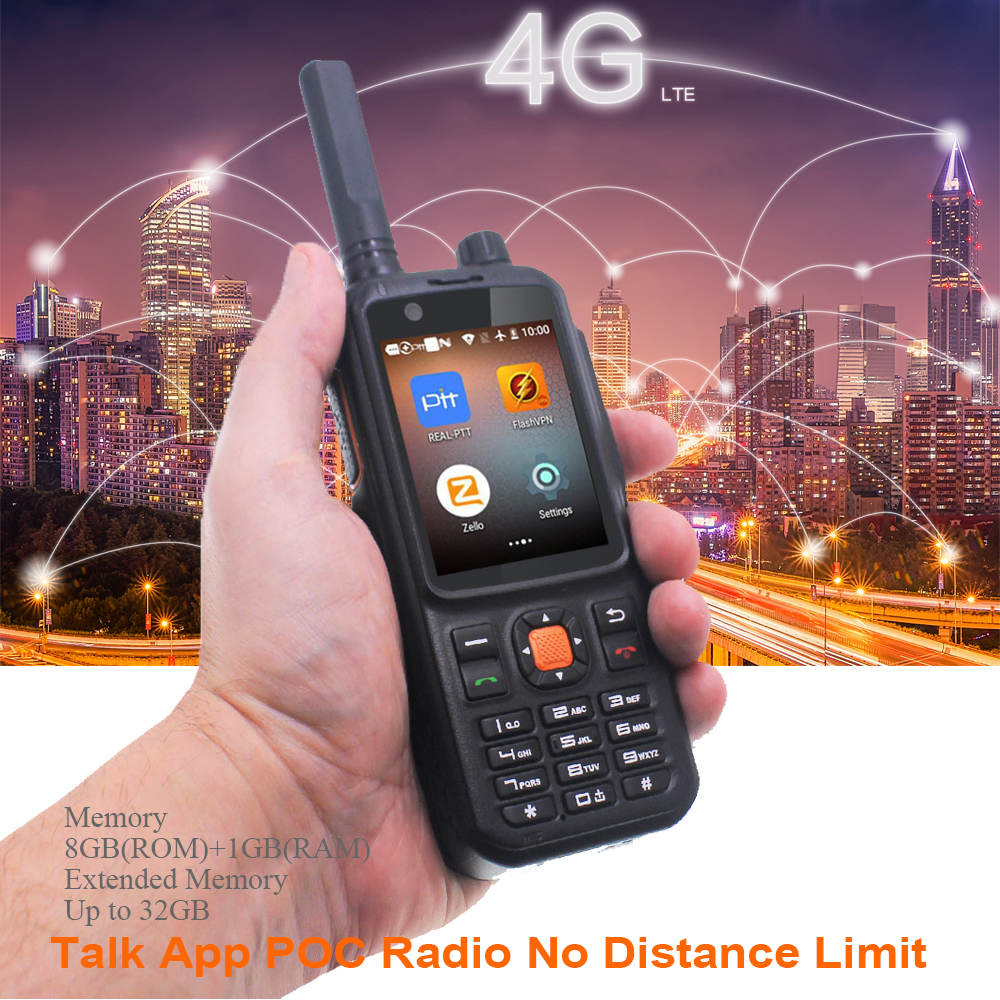

Memory | 8GB(ROM)+1GB(RAM) |
Extended Memory | Up to 32GB |
Speaker+handset | Support |
Speaker & earhpone connector | M6 |

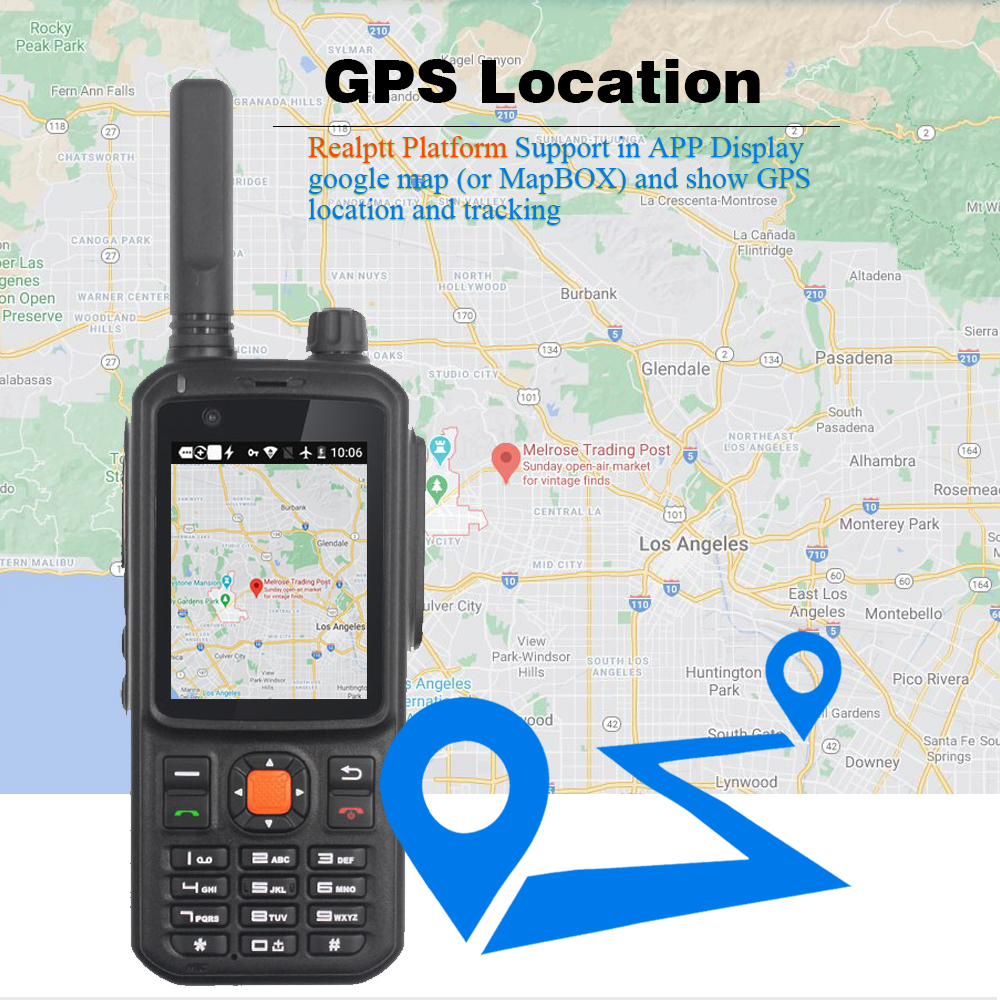

GPS | Support |

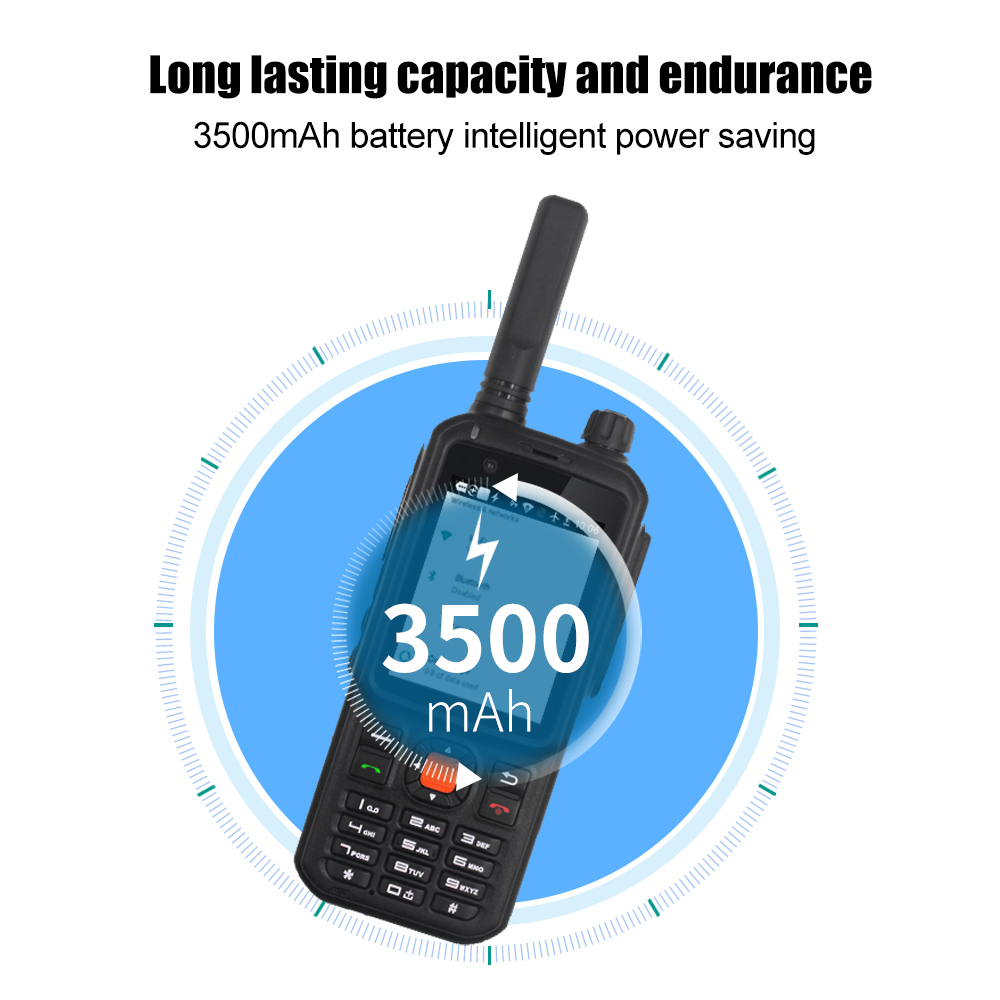

battery capacity | 3500mAh |
Dimensions: H x W x D (mm) | 180*65*24(mm) |
Weight | 262g |
Screen size | 2.4 inch 240(RGB) * 320 Dots Multi-touch Screen |
Standby Time | 29hours |
Electrical Specifications |
Working Frequency
(TNZ968-01-Asia) | FDD-LTE: B1/B3/B7 |
WCDMA: B1/B2/B5/B8 |
GSM: B2/B3/B5/B8 |
Working Frequency
(TNZ800-03-EU) | FDD-LTE: B1/B3/B7/B20/B28 |
TDD-LTE: B38/B39/B40 |
WCDMA: B1/B2/B5/B8 |
GSM: B2/B3/B5/B8 |
Working Frequency
(TNZ800-06-US) | FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B |
TDD-LTE: B38 |
WCDMA: B1/B2/B5/B8 |
GSM: B2/B3/B5/B8 |
Working Current | Power Off: ≤20uA; Sleep mode: ≤3mA; |
Working Temperature/Humidity | T: -30℃~+75℃; H: 5%~95% |
Storage Temperature | -40℃~+90℃ |
Rated Audio Output Power | 1.3W |
Audio Distortion@ Rated Audio | 0.1 |

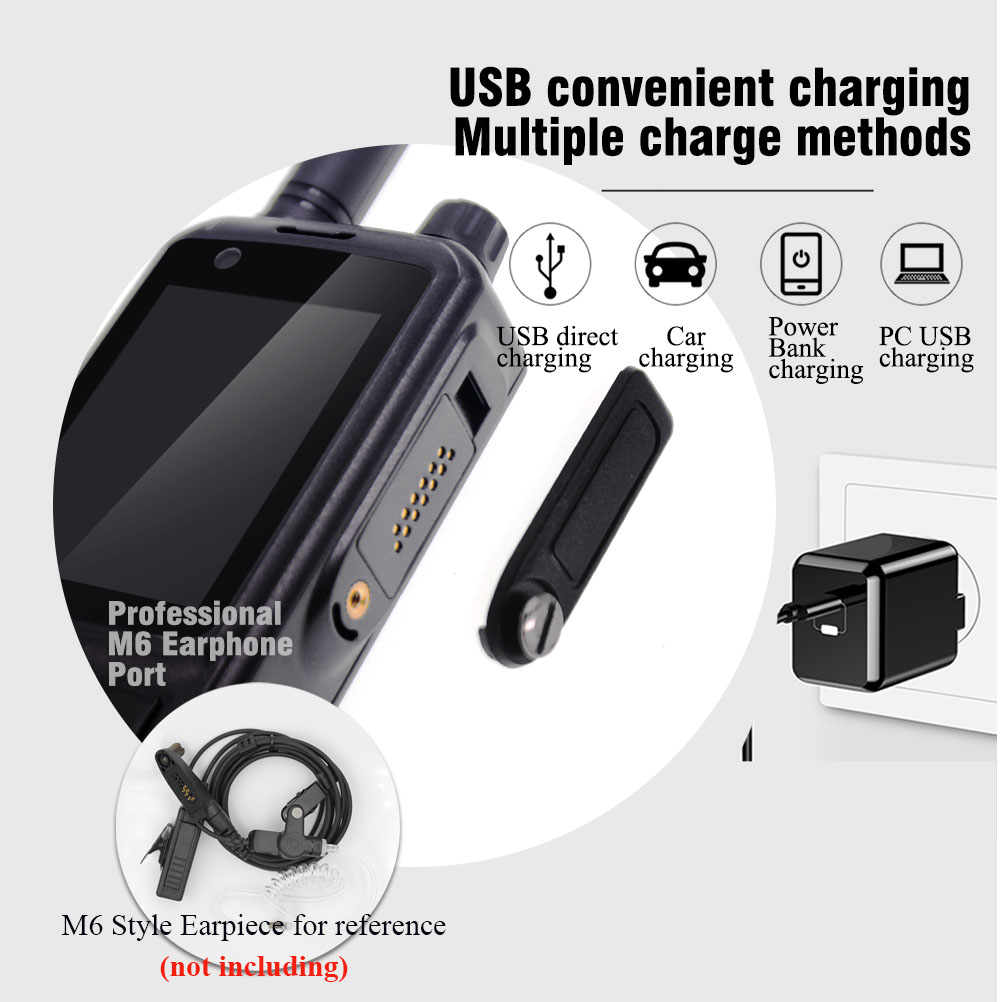

Charger | 5V 1A Micro USB |
Max Output Power | 24dBm~33dBm, ±2dBm |
RX sensitivity | ≤-110dBm |
