Recommend Area Country

Frequency Band

E1C

Europe: Germany / France / United Kingdom / Italy / Belgium / Netherlands / Spain / Russia / Ukraine / Turkey /Mongolia

Africa: South Africa / Nigeria / Egypt

LTE FDD: B1, B3,B7,B8, B20
WCDMA: B1,B8
GSM: B3, B8

U1C

North America: United states / Canada

LTE FDD:B2, B4, B5, B12, B17
WCDMA:B2,B5
GSM:B2,B5

A1C

South America: Mexico / Brazil / Argentina / Chile / Peru / Colombia

Oceania: Australia / New Zealand

LTE FDD: B1,B2,B3,B5,B7, B8,B28
LTE TDD:B40
WCDMA :B1,B2,B5,B8
GSM   Quad-Band(850/900/1800/1900MHz）

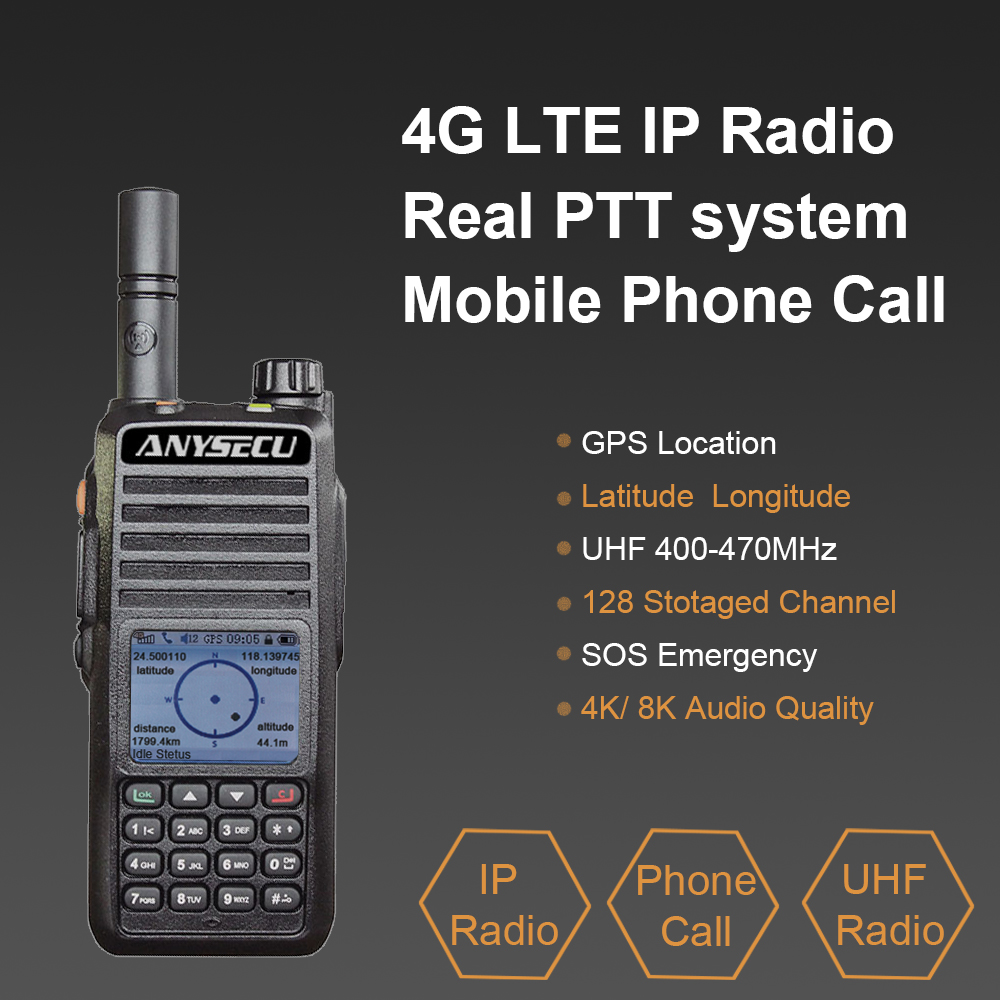

General Specification

Brand

Anysecu

Model

G6000

Display

33.9x43.8x2.5mm 1.77inch

Working Voltage

3.3V～4.25V Standard: 3.8V

Operating temperature

-30℃～+75℃

Standard power

standby battery: 120mA

Maximum current: 800mA

Battery

6000mAh Li-ion

Volume

123*55*37mm

Weight

295g

Network Parameters

System

Linux

Platform

RealPTT (Smart-PTT)

Sim Card Type

1 Standard Sim Size

GPS Frequency

1575.42±1.023MHz

GPS Receive Sensitivity

-152dBm

GPS Receive Cold Start Accuracy

5 meters(50% confidence)

(outdoor)

10 meters(95% confidence)

Integrated full and industrial serial

AT commands, data transmission

UIM deck level

1.8V/2.85V

UHF Parameters

Analog Band

400-470MHz

Storage channels

128

Stepping frequency

100K,50K,25K,12.5K,10K,6.25K,5K

Output power

3W

Receive sensitivity

better than 0.18u

Emission current

≤1.5A

Maximum output power

23dBm～30dBm@-104dBm

Receive signal sensitivity

-106dBm

Antenna

50 ohm
